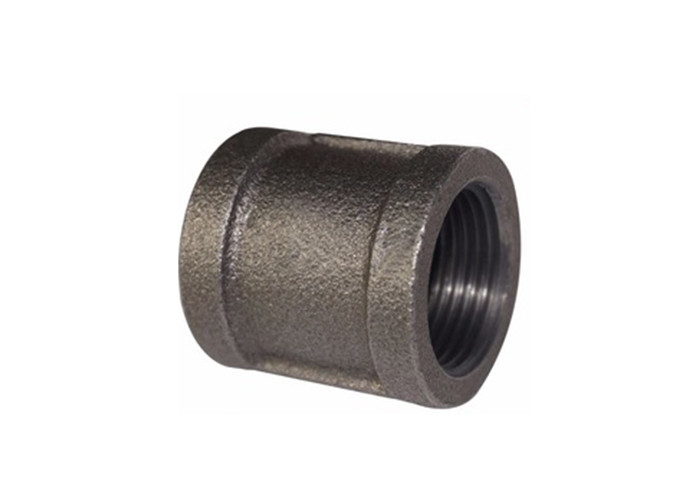

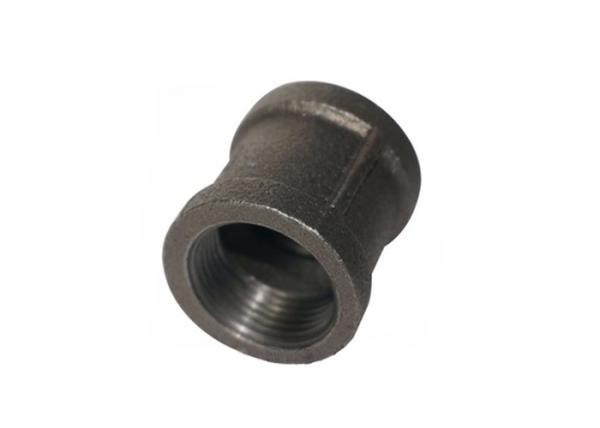

    Socket Galvanized Banded Malleable Iron Pipe Fittings

    Ask Lasest Price
    Brand Name : leyon
    Model Number : malleable iron pipe fittings04
    Certification : FM, UL
    Price : Negotiable
    Payment Terms : D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 9000tons/year
    Delivery Time : 25-35days
    • Product Details
    • Company Profile

    Socket Galvanized Banded Malleable Iron Pipe Fittings

    malleable iiron pipe fittings cross galvanized boss pipe fittings

    Introduction for malleable pipe fittings
    Better toughness creates long using life for malleable iron pipe fittings

    Smooth surface on malleable iron pipe fittings

    The zinc average coating thicknessis higher than the requirements of
    standard of malleable iron pipe fittings for ASME(86 um), EN(70um), DIN(70um) and SI(78um).

    As the quality of raw material of malleable iron pipe fittings is the source of product quality,
    we use dense, strength, unpunchedsteel offcut to produce malleable iron pipe fittings

    We have professional manufacturers and we really emphasize on product quality. Every single product have passed these steps: angle measurement, dimension measurement, spectrum test, stress test, elongation test,preliminary screening, water pressure and manual detection.

    We have satisfying service: Pre-sale: professional sales managers quickly reply within 24 hours. After-sale: quality/quantity claim is acceptable with A class third party writing test report.
    details of malleable pipe fittings

    MaterialMalleable iron
    StandardThread: ISO 7/1
    Dimension: ISO 49, DIN 2950,EN10242
    Chemical property(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
    Physical propertyTensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
    Testing pressure2.5Mpa
    Working pressure1.6Mpa
    TypeBeaded with ribs or banded with ribs
    Beaded without ribs or banded wihtout ribs
    Round/square
    SurfaceGalvanized/ no galvanized
    ColorWhite/black
    ModelElbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
    ConnectionMale, Female
    ShapeEqual, Reducing
    CertificateBSI,ANAB,ISO9001,FM,UL
    ApplicationSuitable for pipe connect of steam, air, gas, oil and so on
    Buyer’s drawings or designs are available
    PackageCartons without pallet
    Cartons with pallet
    Double woven bags
    Or as buyer’s requirements
    Delivery detailsAccording to the quantities and specifications of each order
    Normal delivery time is from 30 to 45 days after receiving the deposit

    Socket Galvanized Banded Malleable Iron Pipe FittingsSocket Galvanized Banded Malleable Iron Pipe Fittings
