Technical data of electrical galvanized flat seat union
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S%
<0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches,
Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges
,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the
deposit |
Outline of electrical galvanized flat seat union
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 |
Dim.
(mm) | A | 32.0 | 36.5 | 41.0 | 43.5 | 49.5 | 52.5 | 57.5 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | 6 | |
| mm | 40 | 50 | 65 | 80 | 100 | 150 | |
Dim.
(mm) | A | 61 | 70 | 82 | 89 | 98 | 145 | |

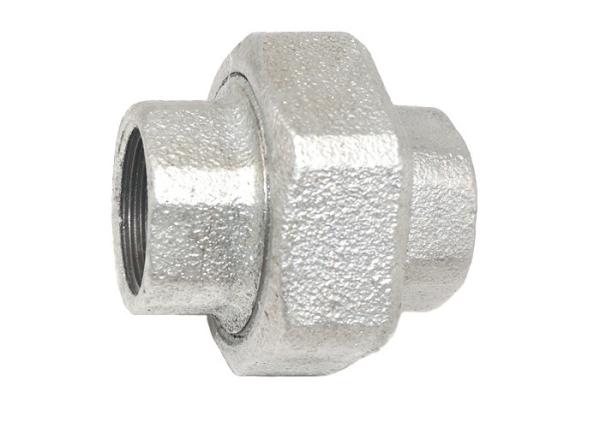

1-1/2" size conical electrical galvanized joint malleable iron
union flat seat
To insure high quality of electrical galvanized flat seat union,we
applied the imported DISA from Denmark,automatic product lines from
DJ AMF and SINTOKOGIO Japan into production .
The spectrometer of Oxford Instruments has applied to test the
quality .
We use the gas annealing furnace of high heating value,which is to
control the annealing procedure strictly and improving the physical
performance.
