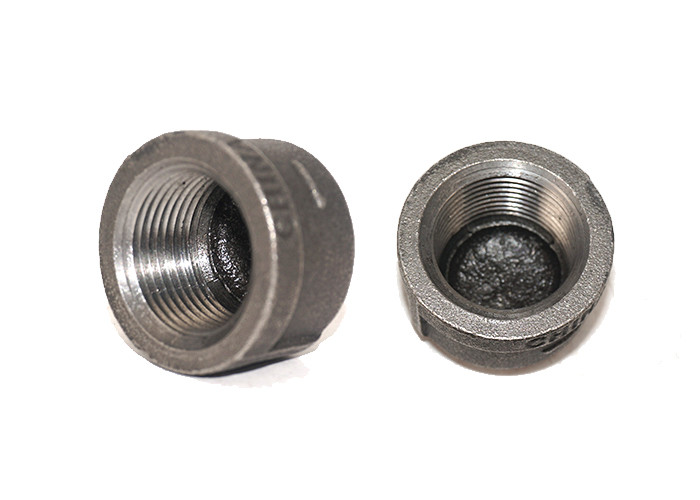

galvanized casting malleable iron pipe fitting ball end screw cap
Specification of malleable cast iron end screw cap.
material:malleable cast iron
size:rang from 1/8" to 6"
finish:hot dipped galvanized,electric galvanized,bake galvanized,black
pop color:galvanized
standard:American standard,British standard, DIN standard
type:cast iron pipe fitting ball screw end cap
our products have passed ISO9001 certificate
edge is beaded,banded,plain
shape is equal and reducing with or without rib
all of the galvanized casting malleable iron pipe fitting ball end
screw cap under strict quality control.
tensile strength HB180>330N/mm,elongation>8%,hardness<HB180
working pressure is 1.6Mpa,test pressure is 2.4Mpa
divided into 3 series:heavy,light,middle
Why choose us!
1. We are the specialized supplier of malleable iron pipe fittings,
can provide the best price!
2. We have more than 20 years experience in exporting products to worldwide countries,
can provide the high quality products!
3. Wide excellent experiences with after-sale service.
4. Every process will be checked by responsible QC
which insures every product's quality.
5. Professional packing teams which keep every packing safely.
6. Trial order can be done in very short time.
7. Samples can be provided as your requirements.
Specification for pipe fitting cap
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S%
<0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches,
Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges
,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
Delivery details
| According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the
deposit |
