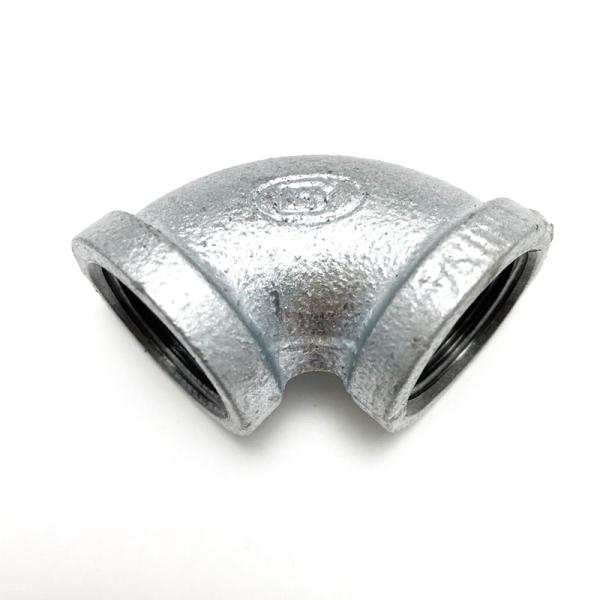

Hot dip galvanized NPT BSPT plumbing fitting 90 Elbow equal female thread

Ask Lasest Price
Brand Name :	leyon
Model Number :	Hot Dip Galvanized Malleable Iron 90 Elbow
Certification :	FM/UL
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :	10000piece/week
Delivery Time :	25-35days

Add to Cart

Product Details
Company Profile

Hot dip galvanized NPT BSPT plumbing fitting 90 Elbow equal female thread

Detail Description

Material	Malleable iron
Standard	Thread: ISO 7/1 BSPP BSPT NPT
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded with ribs or banded without ribs
	Round/square
Surface	Galvanized/ Original Black
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Branches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc.
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	water supplying , plumbing ,fire fighting/protection ,natural gas supplying
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

Characteristics of Galvanized

The advantage of hot-dip galvanizing is that it has a long anti-corrosion period, and it has been a popular anti-corrosion treatment method to adapt to a wide range of environments. It is widely used in power towers, communication towers, railways, highway protection, street lamp poles, marine components, building steel structural components, substation ancillary facilities, light industry, etc.

The thickness of the hot-dip galvanized alloy layer mainly depends on the chemical composition such as the silicon content of the steel, the cross-sectional area of the steel, the roughness of the surface of the steel, the temperature of the zinc pot, the galvanizing time, cooling speed, cold rolling deformation, etc.

Brief introduction of our company:

Leyon Piping System Co., Limited has been specializing in the production of pipe fittings and other related products for more than 25 years, including malleable cast iron pipe fittings, grooved ductile iron pipe fittings, stainless steel pipe fittings, valves, etc.

All our malleable cast iron pipe fittings and grooved pipe fittings are UL/FM certified!

Leyon has three factories in China. Last year we built a new automatic production line and now our annual output is 50,000 tons. Our products can be used in water supply, irrigation, oil and gas transportation, fire protection, and even home decoration.

Now we have established long-term relationships with customers in more than 90 countries. We appreciate the opportunity to show you what makes Leyon Pipe the number one Pipe fitting brand. We always work extra hard for our wonderful customers!

Do not hesitate to contact us!
