1/2" Galvanized Cast Malleable Iron Elbow Threaded 90 Degree Reducing Elbow

    Buy cheap 1/2" Galvanized Cast Malleable Iron Elbow Threaded 90 Degree Reducing Elbow from wholesalers

    Buy cheap 1/2" Galvanized Cast Malleable Iron Elbow Threaded 90 Degree Reducing Elbow from wholesalers
    • Buy cheap 1/2" Galvanized Cast Malleable Iron Elbow Threaded 90 Degree Reducing Elbow from wholesalers
    • Buy cheap 1/2" Galvanized Cast Malleable Iron Elbow Threaded 90 Degree Reducing Elbow from wholesalers
    • Buy cheap 1/2" Galvanized Cast Malleable Iron Elbow Threaded 90 Degree Reducing Elbow from wholesalers

    1/2" Galvanized Cast Malleable Iron Elbow Threaded 90 Degree Reducing Elbow

    Ask Lasest Price
    Brand Name : leyon
    Model Number : 90
    Certification : FM/UL
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 10000piece/week
    Delivery Time : 25-35days
    MOQ : 100pcs
    • Product Details
    • Company Profile

    1/2" Galvanized Cast Malleable Iron Elbow Threaded 90 Degree Reducing Elbow

    1/2'' Galvanized Iron Malleable Cast Iron Pipe Fittings 90 Degree Reducing Elbow With Female Threads For Water Supply


    Leyon has been working in piping system industry for more than 25 years. Our main product includes malleable pipe fitting, ductile iron groove pipe fitting, ductile iron threaded pipe fittings, carbon steel threaded pipe fittings, clamps, pipe nipple , Stainless steel pipe fittings, stainless steel valve and so on.


    The Attribute definition list

    SizeInch1/81/43/81/23/4111/411/2
    mm68101520253240
    Dim.
    (mm)
    A1921252833384550
    SizeInch221/23456
    mm506580100125150
    Dim.
    (mm)
    A506978961151301

    SizeInch3/8X1/41/2x1/41/2x3/83/4x3/83/4x1/2
    mm10X815X815X1020X1020X15
    Dim.
    (mm)
    A2326262830
    B2326262831
    SizeInch1x1/21x3/411/4x1/211/4x3/411/4x1
    mm25X1525X2032X1532X2032x25
    Dim.
    (mm)
    A3235343640
    B3436384142

    SizeInch11/2X1/211/2x3/411/2x111/2x11/42x1/2
    mm40X1515X840X2540X3250X15
    Dim.
    (mm)
    A3639424638
    B4244462848
    SizeInch2x3/42x12x11/42x11/221/2x1
    mm50X2050X2550X3250X4065x25
    Dim.
    (mm)
    A4044565256
    B5052585563

    SizeInch21/2X11/23x21/221/2x23x11/2
    mm65X4080X6565X5080X40
    Dim.
    (mm)
    A64826158
    B69856672
    SizeInch3x24x21/24X3
    mm80X50100X65100X80
    Dim.
    (mm)
    A737884
    B789092

    The Characteristic of Our Products

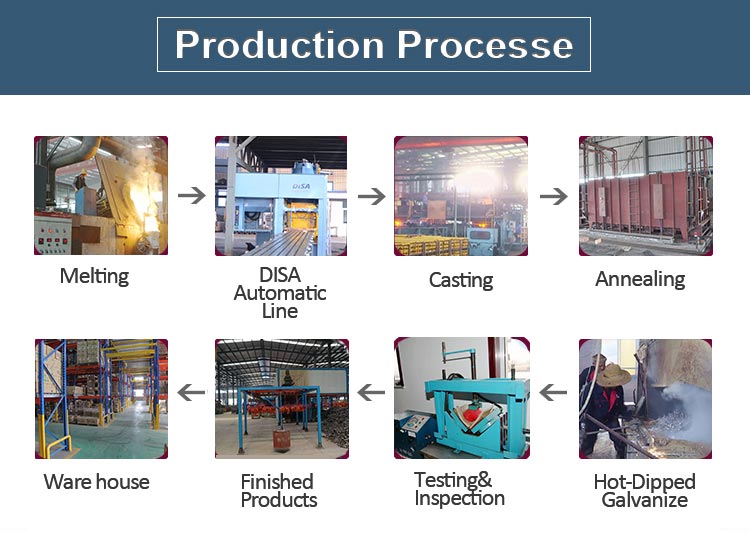

    1: We use excellent raw materials, and have a strict quality inspection system, which includes leakage testing, metallurgy and processing control, the use of spectroscopy to determine the quality of materials, chemical analysis species are strictly controlled to reach standards, and the use of fine particles and high strength , Non-porous iron to produce final castings. Because high-quality iron is the starting point for the production of high-quality pipe fittings.
    2: Precision thread processing, in line with precision standards, such as ASME, EU, BS, DIN, etc. The thread has a precise structure, so the length and straightness of the thread allow them to easily engage the threaded pipe.


    Visual communication of Maleable Iron Pipe Fittings


    MaterialMalleable iron
    StandardThread: ISO 7/1
    DimensionISO 49, DIN 2950,EN10242
    Chemical property(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
    Physical propertyTensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
    Testing pressure2.5Mpa
    Working pressure1.6Mpa
    TypeBeaded with ribs or banded with ribs
    Beaded without ribs or banded without ribs
    Round/square
    SurfaceGalvanized/ no galvanized
    ColorWhite/black
    ModelElbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
    ConnectionMale, Female
    ShapeEqual, Reducing
    CertificateBSI,ANAB,ISO9001
    ApplicationSuitable for pipe connect of steam, air, gas, oil and so on
    Buyer’s drawings or designs are available
    PackageCartons without pallet
    Cartons with pallet
    Double woven bags
    Or as buyer’s requirements

    Delivery details


    According to the quantities and specifications of each order
    Normal delivery time is from 30 to 45 days after receiving the deposit
