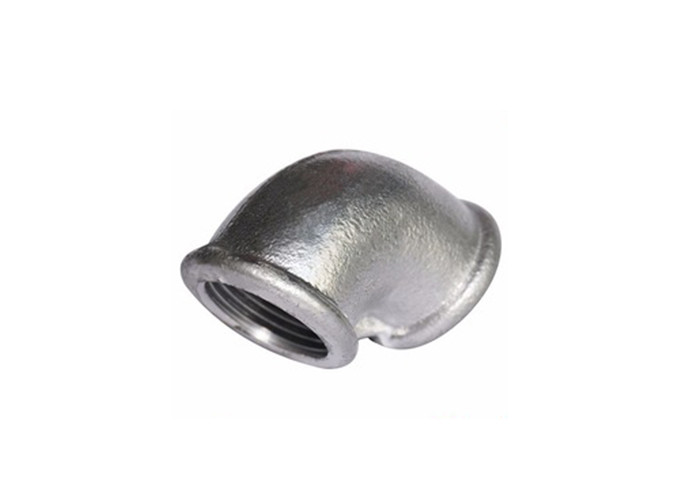

High pressure equal Galvanizated malleable fittings elbow with rib
Introduction of our production line.
We are the well-know manufacturer in the fitting industry with the
most compete range of products, supplying malleable iron fittings,
grooved fittings, valves, cast iron fittings, ductile iron
fittings, steel pipe nipplesand couplings, stainless steel pipe
fittings,ect.
Our range of pipe fittings includes malleable iron pipe fitting,
grooved pipe fitting and plastic lining pipe fitting, etc. They are
designed for fire protection, gas supply and water supply even in
other difficult areas to access.
Our series of pipe fittings are designed for fire protection, gas
supply and water supply even in other difficult areas to access.
malleable iron pipe fitting
Accurate threads are processed that comply with the precise
standards, such as ASME, EU, BS, DIN, etc.
Grooved pipe fitting
Grooved fittings provide an economical and efficient methods of
changing direction, adding and outlet, reducing, or capping piping
systems with strict quality control system
Plastic lining pipe fitting
It has excellent physical properties, high corrosion resistance,
health and non-toxic,
The pipe wall is smooth, which improve transmission efficiency and
has long service life.
Mature installation technology, convenient and easy to install.
Our products' advantages.
1.Crafted, outstanding details.
2. Perfect shape.
3. Quality guarantee
4. Fine workmanship.
FAQ for malleable iron pipe fittings 90 degree elbow
Production Capacity
Our factory could export 30000ton / year.
OEM service
We have professional technical research team. They have 20 years
experience. If you have special requirements about the product, we could help
you solve the problem.
Good Sales Service.
We provide after sales service for you.
Quick Delivery
Products in stock, it will take 15 days for delivery. Standard
delivery time is about 30-45 days.
High work effective
We will always try our best to reply to reply you within 12 hours.
Size format
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
Dim.
(mm) | A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
Dim.
(mm) | A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 | |
Specification for malleable iron pipe fittings 90 degree elbow
Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S%
<0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches,
Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges
,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
Delivery details
| According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the
deposit |
