Different size for Malleable Iron Tee
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
Dim.
(mm) | A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
Dim.
(mm) | A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 | |
Technical Information:
· Material: malleable iron
· Technics: casing
· Type: Malleable Iron Tee
· Connection:male&female
· Head Shape: Equal
· Code: Round
· size:1/8"-8"
· Standard: ANSI, BS, DIN
· Packing: wooden cases or as customers' demands
· surfacetreatment:painting galvaized or as customers' demands
Description of Malleable Iron Tee
We are manufaturers of malleable iron pipe fittings about 24 years,
we seized each opportunity to consolidate its strength, and has
finally developed into what it is today, a large-scale enterprise
group with advanced technology, equipment and strong comprehensive
strength,knows for its complete ranges of products, large producing
capacity,high quality, etc.
1. Most sophisticated metallurgical of Malleable Iron Tee:
Malleable iron pipe fitting tee is made with most sophisticated
metallurgical and processing controls available.
2. The Material quality of Malleable Iron Tee:
cast iron samples are continuously analyzed by using spectroscopy
to conform the material quality
3. Process of Malleable Iron Tee:
Strictly control the annealing process, improve the physical
properties of the material
4. Air tightness test of Malleable Iron Tee :
Each pipe fitting tee after air tightness test, ensure no leakage
5. size control of Malleable Iron Tee :
Strictly control the size of the thread, to ensure accuracy
Detail information of Malleable Iron Tee as the following format.
Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S%
<0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches,
Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges
,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
Delivery details
| According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the
deposit |

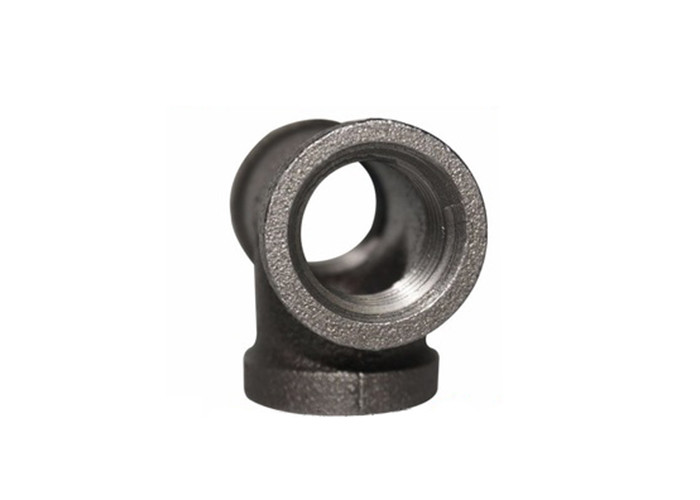

Balck Equal 3/8" - 1/4" Tee Fitting 90 Degree Malleable Iron Tee
