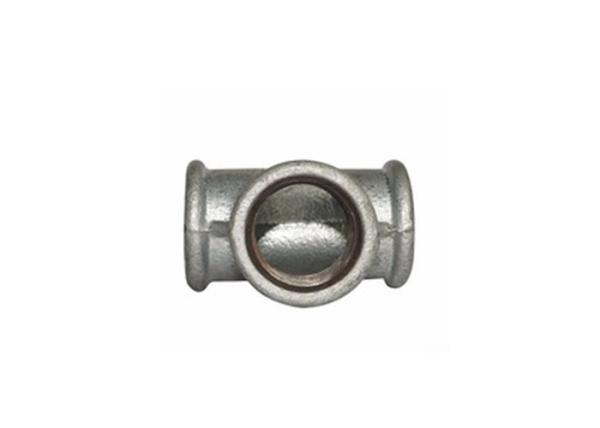

Customized Size Black Malleable Iron Pipe Fittings Equal 90 Degree Tee DIN Standard

Ask Lasest Price
Brand Name :	leyon
Model Number :	DIN standard quick connect tees
Certification :	FM/UL
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :	10000piece/week
Delivery Time :	25-35days

Add to Cart

Product Details
Company Profile

Customized Size Black Malleable Iron Pipe Fittings Equal 90 Degree Tee DIN Standard

Customized Size DIN standard quick connect black equal 90 tees

Over 30 years, Leyon dedicates itself to providing DIN standard quick connect tees for global clients in DIN standard quick connect tees field. Depend upon the collaborations with world top DIN standard quick connect teesmanufactures on high-end DIN standard quick connect tees products application, Leyon could provide professional DIN standard quick connect tees solutions for particular projects amid special construction environment.

Comparison table of Tees Banded Malleable Fittings

Size	Inch	1/8	1/4	3/8	1/2	3/4	1	11/4
Size	mm	6	8	10	15	20	25	32
Dim. (mm)	A	19	21	25	28	33	38	45
Size	Inch	3/8X1/4	1/2X1/4	1/2X3/8	3/4X1/4	3/4X1/8
Size	mm	10X8	15X8	15x10	20x8	20X10
Dim. (mm)	A	23	24	26	26	28

Synoptic table of tees banded equal 90 degree

Material	Malleable iron
Standard	Thread: ISO 7/1
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded without ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

DIN standard quick connect tees is made of advanced metallurgy and processing control.
We using spectrum analyse of DIN standard quick connect tees to check the cast iron sample ‘s quality.
Improved physical properties happened under strict annealing process of DIN standard quick connect tees .
Accurate thread processing of DIN standard quick connect tees is based on international standard strictly.
Diversity size of DIN standard quick connect tees are available, from 1/8” to 8”

Parametric of data of Tees Banded Malleable Fittings :

Substance: malleable iron
Technics: casing
Type: Malleable Iron Tees 90 degree
Connection:male&female
size:1/8"-8"
Standard: ANSI, BS, DIN
Packing: wooden cases or as customers' demands
surfacetreatment:painting galvaized or as customers' demands

Customized Size Black Malleable Iron Pipe Fittings Equal 90 Degree Tee DIN Standard
