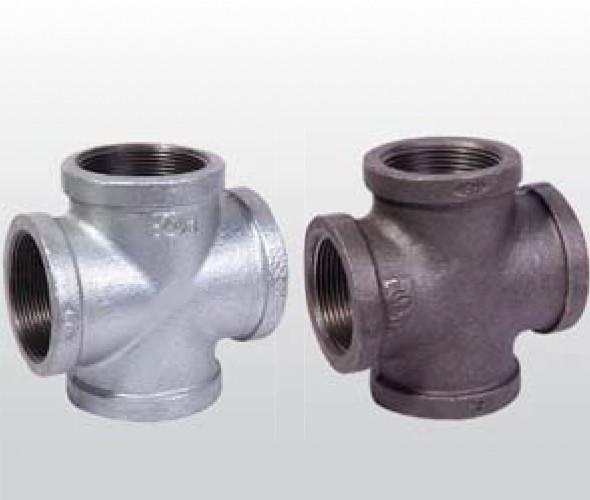

Low price of weld casting iron malleable iron cross joint pipe
fittings

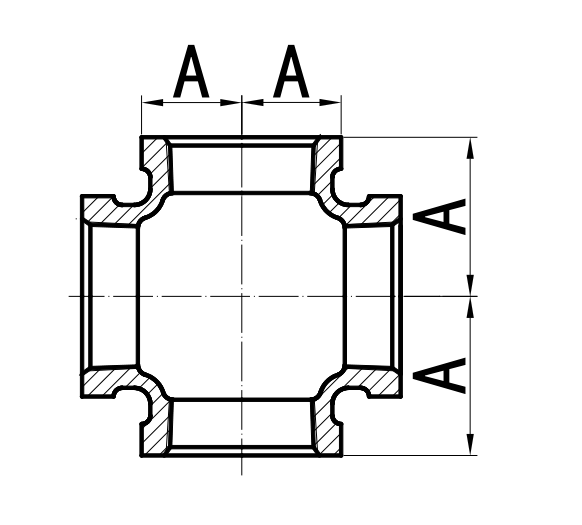

| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 |
Dim.
(mm) | A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 |
| Size | Inch | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 |
| mm | 32 | 40 | 50 | 65 | 80 | 100 |
Dim.
(mm) | A | 44.5 | 49.3 | 57.2 | 68.6 | 78.2 | 96.3 |
1, The equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan
widely used in our malleable iron cross productline, ensures the
stability of product quality.
2, We use spectrometer from Oxford Instruments to check the
material's quality
3, We use high heat value natural gas annealing furnace, strictly
control the annealing process, improve the physical properties of
the materials
4, Each pipe fitting cross after air tightness test, ensure no
leakage
5, Strict control of pipe fittings and the size of the thread, to
ensure accuracy
6, The pipe fittings have outlets ranging from 1/8” through 4”
7, Good toughness with long working life.
8, Smooth surface without any sand hole
9, avg. thickness of zinc coating is higher than 86 um specified in
ASME, EN(70um), DIN(70um), SI(78um)
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S%
<0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches,
Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges
,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the
deposit |
