    ANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / Cross

    Ask Lasest Price
    Brand Name : leyon
    Model Number : forged 05
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000piece/week
    Delivery Time : 25-35days
    • Product Details
    • Company Profile

    ANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / Cross

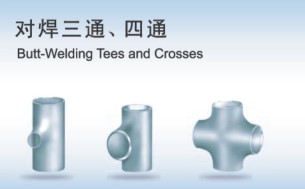

    ANSI pipe fitting butt-welding fittings carbon steel tees and crosses


    Introduction for Forged tee and cross

    1. The surface is smooth, acid and alkali resistant high temperature resistance,

    good appearance, texture performance is strong.
    2. Play an important role in the use,

    withstand harsh conditions and, well, the use of value and function.
    3. The acid and alkali resistance, corrosion resistance,

    suitable for use in a liquid pipe output devices and other fluid pipe fittings, etc.

    4. According to the requirements of the different material,

    heat treatment was carried out on the tee, four-way,

    to improve the mechanical properties of the product;
    5. For each tee, four-way rolling sand or sand blasting, remove surface stains, scale, etc;
    6. For each batch of production, tee, four-way,

    to a certain proportion of UT/MT/PT/RT sampling, to ensure the quality.
    7. The flat, cut head by line cutting,

    after cutting Angle measurement by qualified universal Angle ruler;
    8. Use a magnifying glass to visual inspection of each tee, four-way, pipe surface is smooth,

    no oxide coating. Scratches depth < 5% is greater than 0.5 mm in wall thickness,

    can not have scar, folding, folding, delamination defects.

    Depth of more than 10% of nominal wall thickness or

    greater than 1.5 mm mechanical scratches and pits shall be removed.
    9. Record each tee, four-way size measured values, traceability.
    10. The type of the Tee, four-way: Straight Tee, Reducing Tee,

    Straight Cross, Reducing Cross
    11. Production standards: ASME B16.9, MSS - SP - 75, JIS B2311, 2312, DIN 2615
    12. Size: Welded: 10-80 "" 250-2000 DN (DN); Seamless: 1/2 "- 24" (600) DN 15 - DN
    13. Wall thickness: SCH5S - XXS


    Description Detailed for Forged tee and cross

    Products pipe fittings elbows, bends, tees, reducers, caps
    Size1/2" - 48"
    Wall thicknessSch5-Sch160 XXS
    StandardANSI, ASME API5L, OCT, DIN and JIS, etc.
    we can also produce according to drawing and standards provided by customers.
    MaterialCarbon steel, alloy steel and stainless steel.
    PackagingPlywood Cases or pallets, plastic bag or as customers requirement
    Surface TreatmentShot blasted, rust-proof black oil or paint
    Delivery Time10-40 days
    QualityFirst grade
    Others1.Special design available according to your drawing.
    2.anti-corrosion and high-temperature resistant with black painting
    3. All the production process are made under the ISO9001:2000 strictly.
    4. A conformity rate of ex-factory inspection of products.

    ANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / CrossANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / Cross

    ANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / CrossANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / CrossANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / Cross

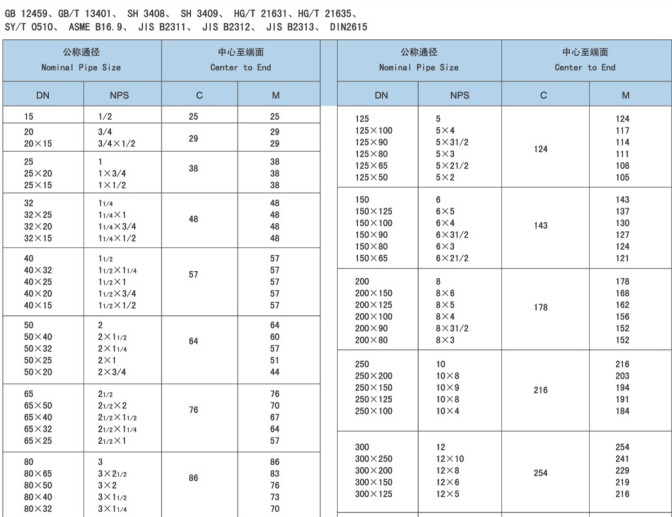

    Draft for forged swage nipple

    ANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / Cross

    ANSI Standard Carbon Steel Nipple Butt Weld Pipe Fittings Carbon Steel Tee / Cross
