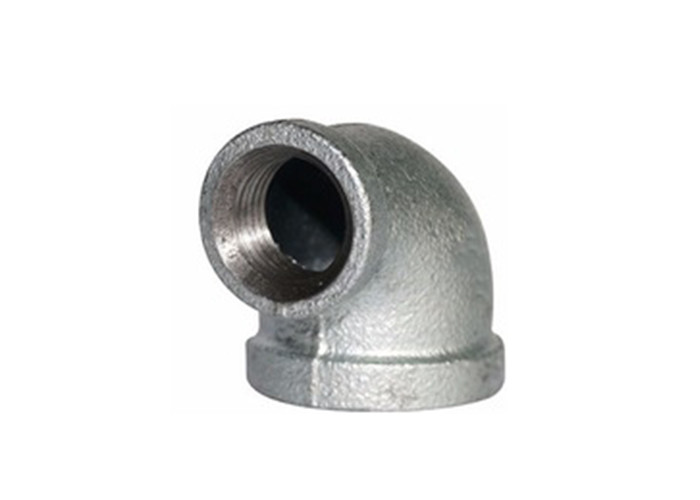

High Pressure Equal Galvanization 45 Elbow 90 Degree Elbow Pipe
Fitting
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S%
<0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches,
Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges
,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
Delivery details
| According to the quantities and specifications of each order |
Normal delivery time is from 30 to 45 days after receiving the
deposit
|
Why the malleable cast iron from ileyon is expensive than other factory ?
Firstly about the raw material:
Kanaif uses good scrap steel , it cost higher than others , nearly over extra 100 to 200 yuan per tone . Kanaif adopts large pieces of coke, low sulfur, high calorie . Kanaif uses” Nyrstar A-Z Z1’ Zinc ingots
Secondly about the process of production :
Smelting: Adopting electric stove and blast furnace double
smelting, can control the ingredient and temperature well .
Testing : We test the molten iron by examples , spectrometer spectrometry and manual inspection.
Mixed sand: Use DISA Denmark system
Annealing: The temperature is controlled by computer exactly
Pickled: automatic pickling system
Packing: Use high quality double woven bag , packing few and easy to transport .
The labor cost is higher
Becaue kanaif need more people to check the products in many processes. Like 1.
after broken box , 2.raw blank inspection , 3. cooked rough inspection ,4. after hot galvanized inspection , 5. before the machine inspection , 6. Products inspection 7. Inspection before packing
Size chart of 90 Degree Elbow Pipe Fitting
| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 |
Dim.
(mm) | A | 23 | 26 | 26 | 28 | 30 |
| B | 23 | 26 | 26 | 28 | 31 |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 |
Dim.
(mm) | A | 32 | 35 | 34 | 36 | 40 |
| B | 34 | 36 | 38 | 41 | 42
|
