China Supplier Malleable Iron Galvanized Pipe Fittings reducing tee

Ask Lasest Price
Brand Name :	leyon
Model Number :	reducing tee pipe fitting
Certification :	FM/UL
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :	10000piece/week
Delivery Time :	25-35days

Add to Cart

Product Details
Company Profile

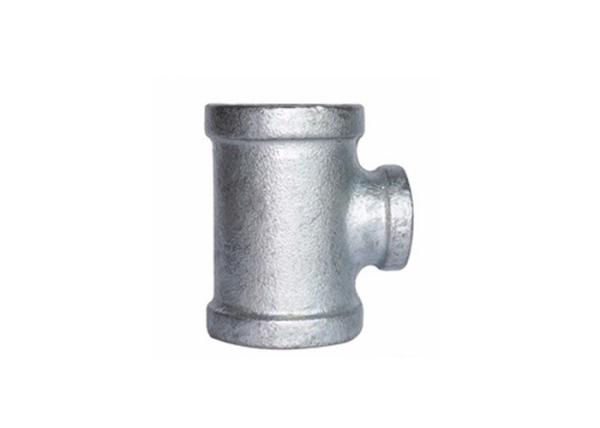

China Supplier Malleable Iron Galvanized Pipe Fittings reducing tee

Graph of reducing tee pipe fitting

Size	Inch	1/8	1/4	3/8	1/2	3/4	1	11/4	11/2
Size	mm	6	8	10	15	20	25	32	40
Dim. (mm)	A	17.5	20.6	24.1	28.5	33.3	38.1	44.5	49.3
Size	Inch	2	21/2	3	4	5	6	8
Size	mm	50	65	80	100	125	150	200
Dim. (mm)	A	57.2	68.6	78.2	96.3	114.3	130.3	162

1. Surface :

Malleable iron pipe fitting tee is made with most sophisticated metallurgical and processing controls available

2. Spectrum analyse of reducing tee pipe fitting :

We using spectrum analyse to check the cast iron sample ‘s quality

3. Strict annealing process:

The improving of material physical properties rely on strict annealing process

4.Range :

Outlet range of fittings is from 1/8”~8”

Long working life black malleable iron pipe fitting water wasting tee connector

Material	Malleable iron
Standard	Thread: ISO 7/1
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded without ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

What’s malleable cast iron ?

Malleable cast iron is produced from white cast iron, which is made from hot liquid iron with certain chemical components. The white cast iron needs to be treated by malleablizing, such as graphitizing or oxidation and decarbonization, then its metallographic structures or chemical components will be changed, so can become into malleable cast iron.

Blast-Furnace smelting + electric furnace adjustment duplex smelting technology, 48 hours – 3 sections –electric annealing technology, comprehensively ensure our products’ quality to be the best .

China Supplier Malleable Iron Galvanized Pipe Fittings reducing tee

A&Q

A. Why reducing tee pipe fitting is no leakage ?

Q.Air tightness test applied on every tee, to ensure there is no leakage

A.How control reducing tee pipe fitting ?

Q.Strictly control the size of the thread, to ensure accuracy
