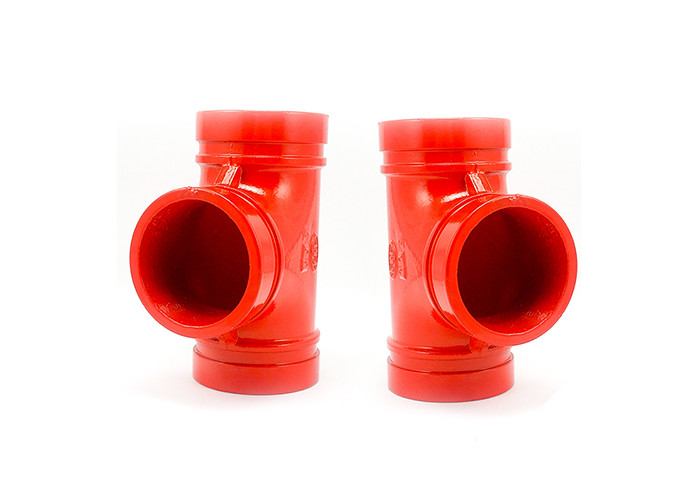

Strictly quality control grooved tee pipe fittings ductile iron tee
Quck details for ductile iron tee
Grooved fittings provide an economical and efficient methods of
changing direction,
adding and outlet, reducing, or capping piping systems.
Grooved fittings are available in ductile iron or fabricated steel
as indicated.
- Grooved fittings provide an economical and efficient methods of
changing direction,
- adding and outlet, reducing, or capping piping systems.
- Material: cast ductile iron conforms to ASTM A-536, grade 65-45-12
- Wall thickness: Size 1”-10” schedule 40
- Sizes 12”-24” standard wall 0.375
- Pressure testing machine to control product quality strictly
- Smooth mouth without burr.
- productive coatings
- Non-lead red paint;
- Non-lead blue paint.
Application
1) Automatic sprinkler system for fire protection on commercial
,civil and
municipal constructions like water supplying ,gas supplying, heat
supplying,etc
2) Industrial pipeline system on shipping ,mine, oil
field,textile,powder plant,etc.
3) Pipeline system on subway station ,railway station ,airport,
seaport,bridge,etc.
Dimension for ductile iron tee
Nominal
Size
mm/in | Pipe
O.D.
mm/in | Working
Pressure
PSI/Mpa | Dimensions
L
mm/in | Certificate |
50
2 | 60.3
2.375 | 362.5
2.5 | 68.5
2.697 | 3C UL FM |
65
21/2 | 76.1
3.000 | 362.5
2.5 | 76
2.992 | 3C UL FM |
80
3 | 88.9
3.500 | 362.5
2.5 | 82.5
3.248 | 3C UL FM |
100
4 | 108.0
4.5 | 362.5
2.5 | 93.5
3.681 | 3C UL FM |
100
4 | 114.3
4.5 | 362.5
2.5 | 98
3.858 | 3C UL FM |
125
5 | 133.0
5.250 | 362.5
2.5 | 106.5
4.193 | 3C UL FM |
125
5 | 139.7
5.250 | 362.5
2.5 | 113
4.449 | 3C UL FM |
150
6 | 159.0
6.500 | 362.5
2.5 | 123.5
4.862 | 3C UL FM |
150
6 | 165.1
6.500 | 362.5
2.5 | 131
5.157 | 3C UL FM |
200
8 | 219.1
8.625 | 362.5
2.5 | 164
6.457 | 3C UL FM |
250
10 | 273.0
10.750 | 362.5
2.5 | 205
8.061 | 3C UL FM |
Details for grooved tee
| Material | Ductile lron |
| Standard | ASTM A536 Gr.65—45—12 EN1563.JIS G5502 |
| Physical property | Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Surface | painted |
| Color | red, blue, white |
| Model | Ductile iron grooved pipe fittings (Rigid
coupling,45°elbows,grooved pipe fitting 90°elbows,reducing
tee,grooved cross,flange coupling,cap ect.) |
|
| Connection | Female, welding, flange |
| Shape | Equal, reducing |
| Certificate | FM,UL BSI,ANSI,ISO9001, 3C |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the
deposit |
